CWL LABELING SYSTEMS
Built For Many Label Applications
- The CWL 150 WP Model Label Applicator is extremely versatile. The label applicator can be configured in multiple ways to allow for various label applications. Regardless of the surface or size, the 150 WP Model is capable.
- Each 150 WP Model Label Applicator is configurable to one of three application methods:
- site labeling
- top labeling
- site and wrap-around labeling
State-Of-The-Art Technology
- The CWL 150 WP Model controller is also equipped with AB PLC controller connectivity with external connectors to accommodate the following: low label – single, double, or triple alarm stack – web break – encoder velocity compensation – loose loop control – product shape profiling imprinting – zero downtime configuration – two channel E-Stop monitoring. Each machine is shipped preprogrammed and can have the additional hardware installed later for simple “plug-and-play” operations. The electronic control assembly is packaged as a module and can be easily removed for repair or replacement, eliminating costly downtime and servicing. Software updates can be downloaded from a remote source or emailed for user-friendly support.
Built For Food Container Wrap Labelling

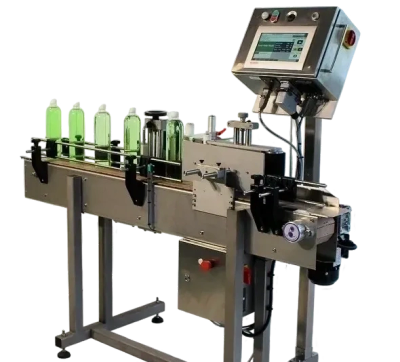

- The CWL 150 WP Labelling System , is an automatic, modular labeller designed specifically for sleeve-style and wrap-around labeling of cylindrical products and bottles. It is known for its high precision, smooth integration into larger production lines, and ability to handle wraps featuring large amounts of product information.
WPCWL Series Model A Label Applicator
- For those looking for an all-purpose solution for your needs, the 150 Model A Label Applicator is the evolution of the industry standard CWL Series. No matter the type of applicator you need, the 150A Model is extremely versatile. The design of the applicator is ambidextrous, allowing you to quickly and easily switch hands with little to no change.
CWL LABELING SYSTEMS
WPCWL Series Model A Label Applicator
- For those looking for an all-purpose solution for your needs, the 150 Model A Label Applicator is the evolution of the industry standard CWL Series. No matter the type of applicator you need, the 150A Model is extremely versatile. The design of the applicator is ambidextrous, allowing you to quickly and easily switch hands with little to no change.
State-Of-The-Art Technology
- The CWL 150A Model controller is also equipped with AB PLC controller connectivity with external connectors to accommodate the following: low label – single, double, or triple alarm stack – web break – encoder velocity compensation – loose loop control – product shape profiling imprinting – zero downtime configuration – two channel E-Stop monitoring. Each machine is shipped preprogrammed and can have the additional hardware installed later for simple “plug-and-play” operations. The electronic control assembly is packaged as a module and can be easily removed for repair or replacement, eliminating costly downtime and servicing. Software updates can be downloaded from a remote source or emailed for user-friendly support.
CWL 150 – For all labeling applications
Key Features
- Configurable to different applicator types
- Adjustable widths to allow for multiple label sizes
State-Of-The-Art Technology
The CWL Label Applicator comes equipped with industry-leading technology that is designed to help improve workloads. Each applicator is built with a stepper motor and drive package.
CWL - 100 C LABEL APPLICATORS
Accurate labeling for each and every pack
The CWL 100 labeler is configured as one of the most advanced compact robust and accurate labeling machines.
It can match your individual requirements following the highest hygienic standards and offering multiple software modules to be able to label, track your production line and much more.
Powerfull labelling head
.png/:/rs=w:400,cg:true,m)
Robust and accurate labeling head
- Robust compact labelling head
- Suitable for large label rolls
- Designed for top or bottom mount
- Quick install
- No hard wiring required
- A 16-pin plug provides the massive advantage of combining power delivery, data transfer, and control signals into a single, compact, and standardized interface .
EASY TO OPERATE

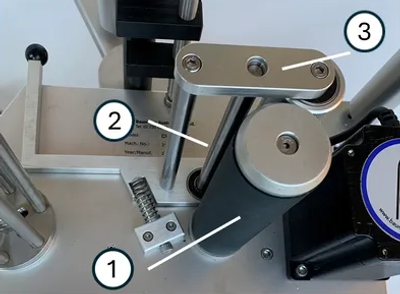

CWL FAST LABEL LOADING SYSTEM
Our fast label feed system is designed for quick change over.
The drive roller station is responsible for the transport of the backing strip after the labels have been detached.
The backing strip is wound on to the backing paper rewind.
- Drive roller
- Anti-tamper device
- Tightening reel assembly
Pressure-Sensitive LABELING SYSTEMS
CWL - Labeling Head
Pressure-Sensitive Labeler to apply pressure-sensitive labels to almost any shape or size of bottles reliably.
- Rapid return on your investment
- Reduce your labor costs
- Labeling accuracy +/- 0.5 mm
CWL - 150 CROSS WEB LABELERS
CWL - 150 Cross - Web labeler
Baumann is a leader in cross web labeling solutions with a broad range of clients in the food, medical and other industries using our CWL- labeling equipment. Our portfolio includes accurate, high-speed portable and stationary crossweb labeling machines that come in a variety of configurations to meet your needs and are designed for easy operation.
- Rapid return on your investment
- Reduce your labor costs
- Labeling accuracy +/- 0.5 mm

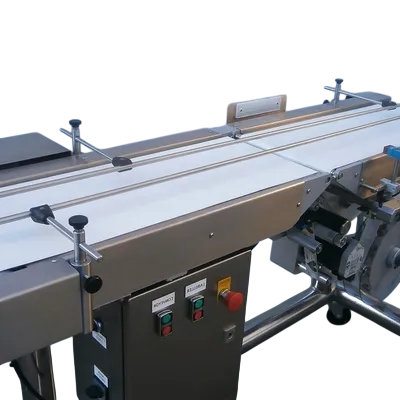

CWL Bottom - Up Labelers
Labeling system for labeling from the bottom
- Non - Corrosive Materials
- Conveyor speed up to 40 m / minute
- Standard conveyor width 300 mm
- Standard conveyor length 2000 mm
- Processes paper or transparent labels
- Standard label width 150 mm
- Quick label roll replacement system
- Roll - End warning system
- Easy access for label change
- Labeling accuracy +/- 0.5

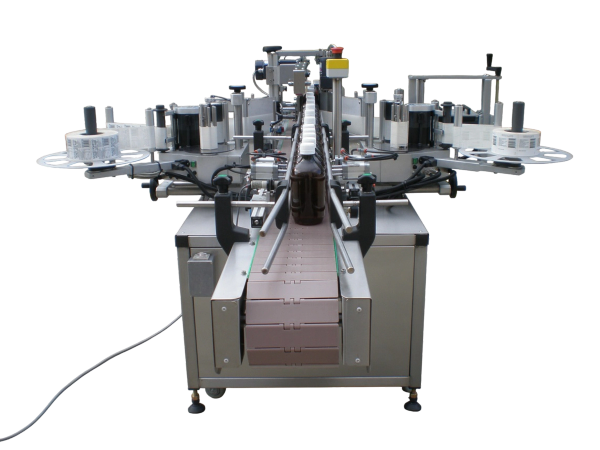

Front/Back/Wrap Labeling System
Description
To meet the ever-changing needs of modern society, Baumann Labeling System has designed a fully automatic, competitively priced label applicator to fit various customer needs.
This custom labeling system can be utilized for two different label applications – front and back labeling and wrap labeling. Depending on the product or package being labeled, we will determine which configuration best suits your needs.
Key Features
- Accommodates various products, with conveyors from 200 mm to 400 mm wide and from 1500 mm to 2500 mm long
- Conveyor velocity from 90′ per minute to 120′ per minute several enhanced and value-added options come as standard
- Additional, optional features available for added compatibility with your facility
Safety Features
This wrap label applicator comes in an IP-64 main enclosure and SAFETY lock-out, in compliance with standards.
The IP-64 enclosure helps to prevent unwanted moisture from finding its way into the electrical components of the label applicator.
This label applicator’s lockout system allows for quick and safe disabling of the labeling system should a surge in hazardous energy occur.
Enhanced Features That Come, Standard,
The primary frame on this label applicator is made from heavy-duty tubular steel to ensure a capacity that can handle any workload.

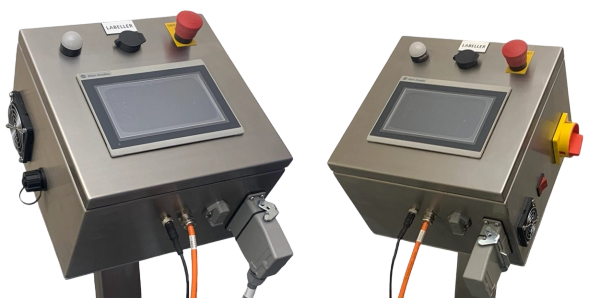

Each front/back/wrap label applicator comes with a premium color touch screen, designed by Baumann Engineering. The color touch screen allows for accessible control and easy readability of all the essential functions of the labeling system.
Optional Features
BAUMANN’s Front, Back, and Wrap Labeling System is capable of being configured with optional features that can bring enhanced workflow to your facility. Options include:
- Stainless steel frame
- Encoder speed following for labelers
- Stack light(s)
- Label on product scanning and eject
- Pneumatic – required with certain features
Ensure that your facility is running at peak efficiency with this state-of-the-art, custom-label applicator that is made to fit your exact needs.
Contact Us today to get started on ordering your Front/Back/Wrap Labeling System.
